Stainless steel crystallization reactor with filtration function, 50L jacketed layer reaction vessel design, pressure gauge & safety automatic pressure relief design, Ex motor and controller for safe and convenient operation. which is most popular used for plant oil crystallization.
Main technical parameters of this type 50L stainless steel crystallization reaction vessel
- Material: Stainless Steel (glass type optional).
- Capacity: 50L jacketed layer ( Lab – Pilot – Industry Flexible Design).
- Filter plate: SS316L sintered net ( Sand core / PTFE / SS316 / Titanium filter plate optional).
- Motor power: Ex three phase 220V 60Hz.
- Stirrer motor: 180W.
- Working voltage: 220V 60Hz 1 phase.
- Ultrasonic power: 2500W.
- Controller: Ex controller.
- Pressure design: Pressure gauge & safety automatic pressure relief design.
- Package: Professional wooden box package.
Advantages of stainless steel crystallization equipment
1. Ex Motor & Controller, safe & easy operation.Vigorous torque stirring motor makes the stirring more powerful.
2. Large charging port with high sealing performance.Easy charging & Meet the high vacuum requirements of whole crystallization system.
3. Large solid discharge port could open easily & convenient pick out. Observation mirror is convenient for you to observe the stirring & filtration status inside the reactor at any time.

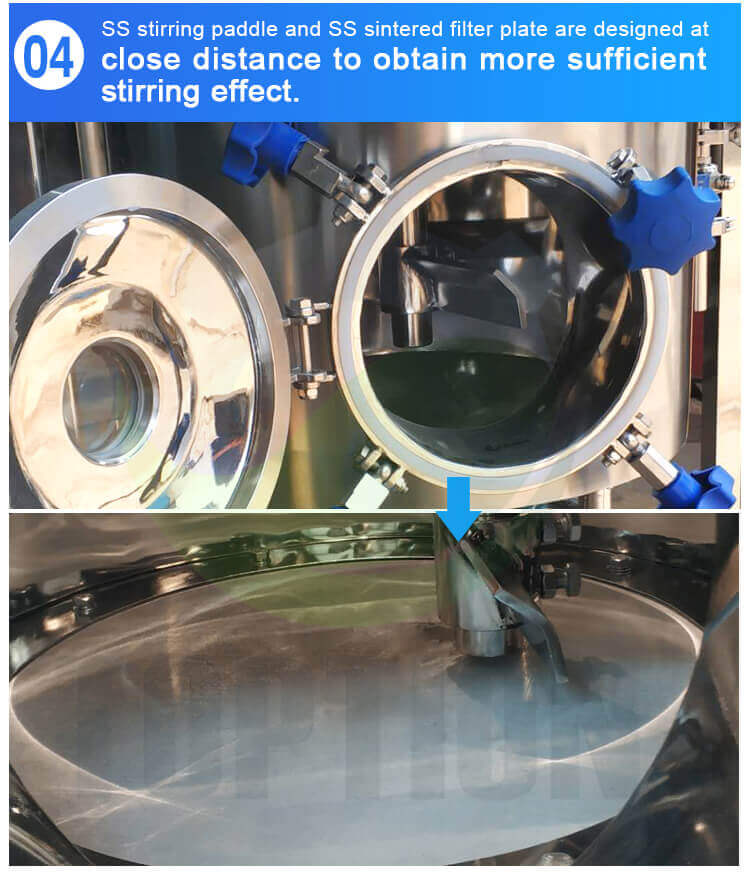

4. SS stirring paddle and SS sintered filter plate are designed at close distance to obtain more sufficient stirring effect.
5. SS316 jacketed layer reaction tank with good insulation.
6. Facilitate sampling design, easy observe whole filtration process.
7. Stainless steel receiving tank, discharging valve no dead ends design.
8. Safe operation. Pressure gauge & safety automatic pressure relief design.
9. Vacuum pump & temperature circulation bath are available.

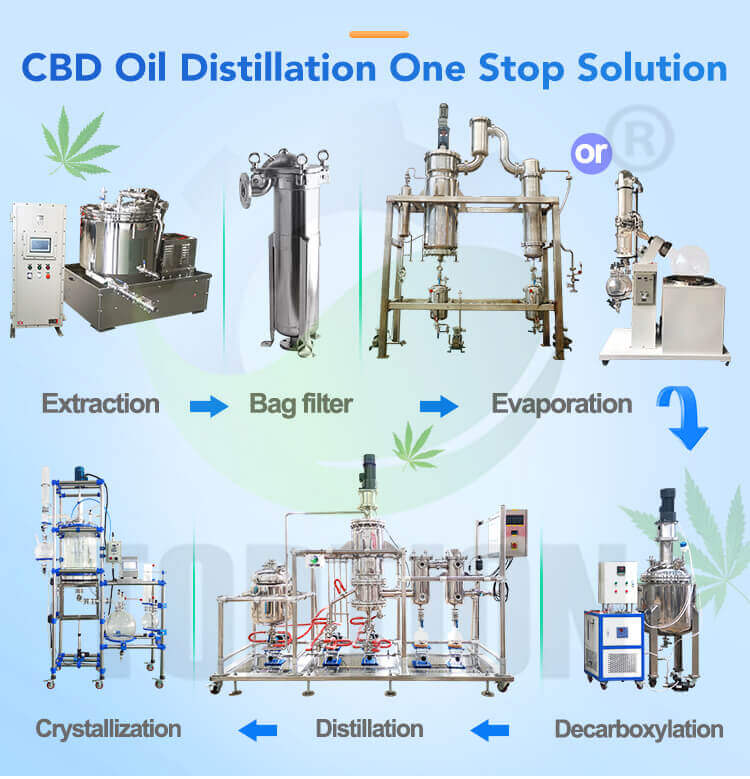

CBD extraction | distillation turnkey solution, contact info@toptionlab.com to customize your requirements.
